MSI B350 Gaming Plus Motherboard (Pre-owned) Description

-Fully tested and comes with 1 Month warranty

-May not include original box

Model

Brand  : MSI

Model : B350 GAMING PLUS

Supported CPU

CPU Socket Type : AM4

CPU Type : AMD Ryzen/7th Gen A-series/Athlon Processors

Chipsets

North Bridge : AMD B350

Memory

Number of Memory Slots : 4 x DDR4

Memory Standard : DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz*

Maximum Memory Supported : 64GB

Channel Supported

Dual Channel : Expansion Slots

PCI Slots  : 1xPCIe 3.0 x16 slot (PCI_E2), 1xPCIe 2.0 x16 slot (PCI_E4, supports x4 mode), 2xPCIe 2.0 x1, 2xPCI slots

Storage Devices

SATA 3Gb/s  : 4 x SATA 6Gb/s

Onboard Video : Onboard Video Chipset

Available : Onboard Audio

Audio Chipset : Realtek ALC892 Codec

Audio Channels  : 7.1-Channel High Definition Audio

Onboard LAN

LAN Chipset : 1xRealtek 8111H Gigabit LAN controller

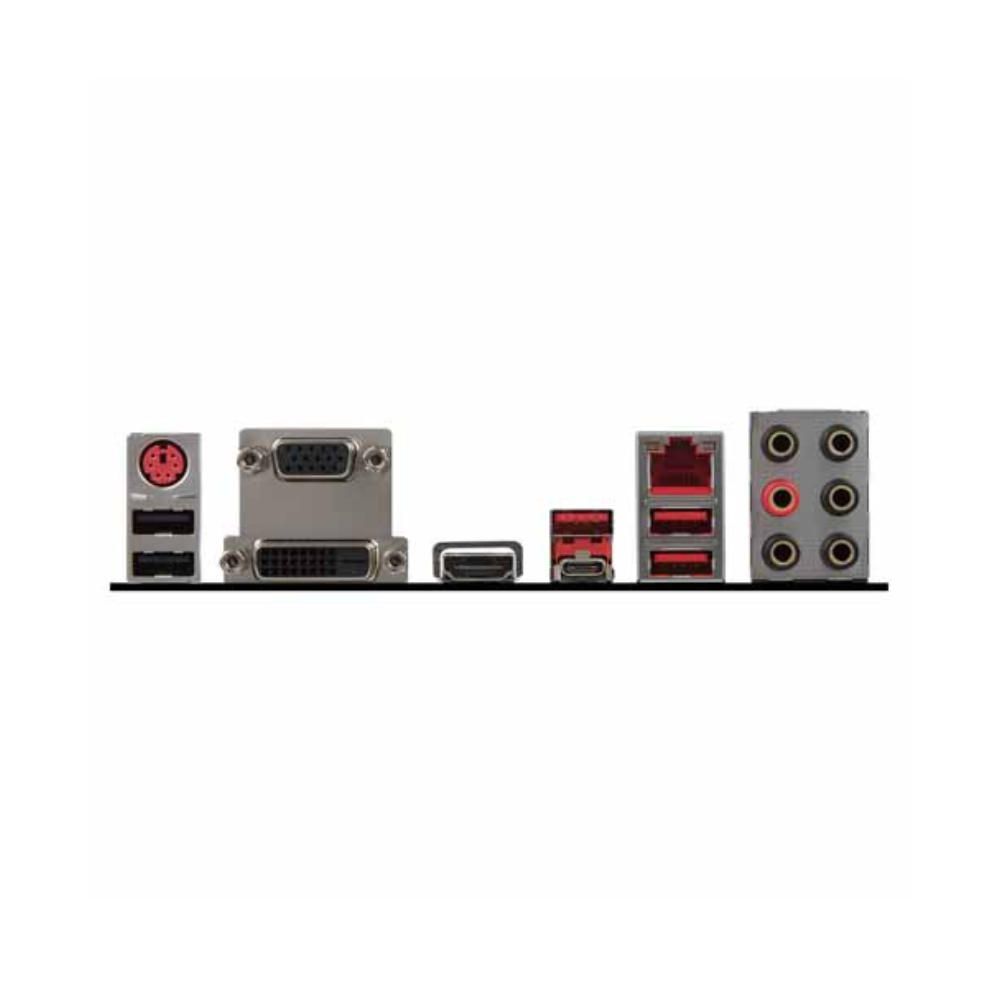

Rear Panel Ports :

PS/2 : 1 x PS/2 keyboard/mouse combo port(s)

Video Ports : HDMI,DVI-D,VGA

HDMI  : 1 x HDMI

USB  : 4 x USB 3.1

Audio Ports : 6 x OFC audio jacks

Onboard USB

Onboard USB : 8 x USB 3.1,6 x USB 2.0

Onboard 1394

Onboard 1394 : N/A

Physical Spec

Form Factor  : ATX

Dimensions  : 30.4×24.3 cm
